In this guide, you will learn how to leverage the power of Snowpark Container Services (SPCS) and the Snowflake Model Registry to build, deploy, and serve a machine learning model for real-time predictions. We will walk through a complete data science workflow, from data preparation and feature engineering to model training and deployment as a secure, scalable service.

This guide uses a real-world dataset of Chicago Transit Authority (CTA) daily ridership to forecast future demand. By the end, you will have a fully functional model serving endpoint accessible from both within and outside of Snowflake.

What You Will Learn

What You Will Build

Prerequisites

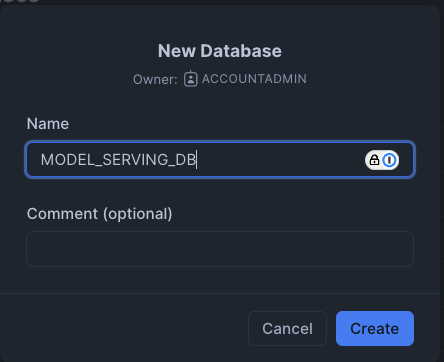

First, we will create a database called MODEL_SERVING_DB in Snowflake as below. We will also create a warehouse called DEMO_BUILD_WAREHOUSE.

1_DB_Creation

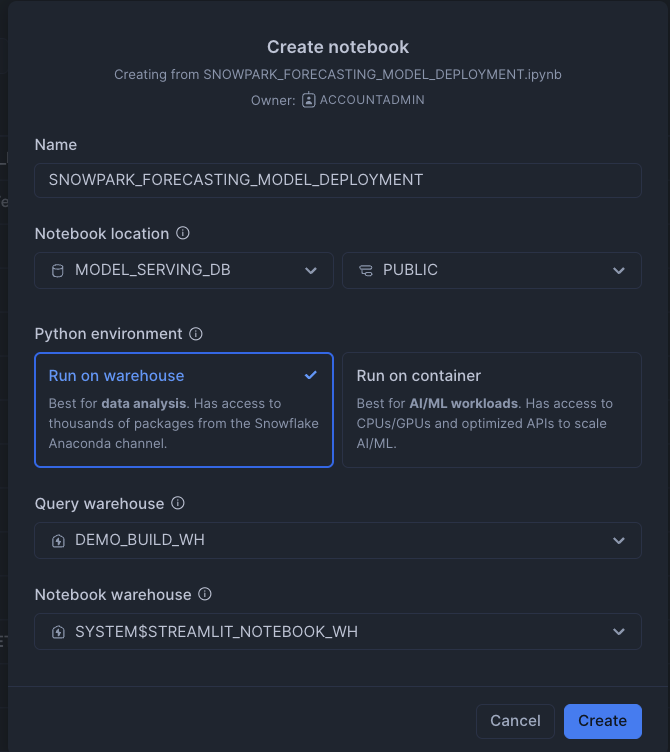

We will then import the attached notebook inside this github repo. Some things to note

2_Import_Notebooks

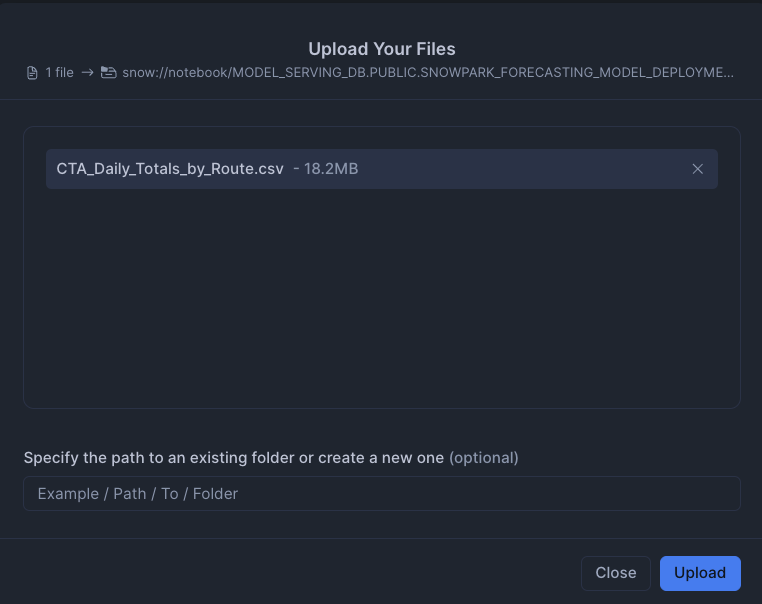

We will then import the attached notebook inside this github repo by clicking the import notebook option in Snowflake.

3_Import_CSVs

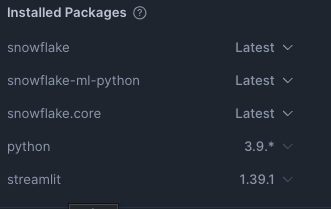

Lastly, we will import our packages into Snowflake

4_Import_Packages

Setup Environment

First, we set up the Python environment by importing the necessary libraries. This includes Snowpark for data manipulation, Snowflake ML for modeling, and the Feature Store.

# Snowpark for Python
from snowflake.snowpark.session import Session
from snowflake.snowpark.version import VERSION
from snowflake.snowpark import functions as F

# Snowpark ML
from snowflake.ml.modeling.pipeline import Pipeline
from snowflake.ml.modeling.xgboost import XGBRegressor
from snowflake.ml.feature_store import FeatureStore, CreationMode, Entity, FeatureView
from snowflake.ml.registry import Registry

# Misc
import pandas as pd

# Get active session
session = get_active_session()

Load Data

We begin by loading the Chicago bus ridership data from a CSV file into a Pandas DataFrame, and then into a Snowpark DataFrame. This data is then saved as a table in Snowflake

# Read data and create Snowpark DataFrame
df_clean = pd.read_csv('CTA_Daily_Totals_by_Route.csv')
df_clean.columns = df_clean.columns.str.upper()
input_df = session.create_dataframe(df_clean)

# Save DataFrame as a table in Snowflake
input_df.write.mode('overwrite').save_as_table('MODEL_SERVING_DB.FEATURE_STORE_MLDEMO.CHICAGO_BUS_RIDES')

Create and Register a Feature Store

A Feature Store is created to manage and version our features. We then register an Entity which represents a real-world object that our features are associated with, in this case, a bus route.

# Create a feature store
fs = FeatureStore(
    session=session,
    database="MODEL_SERVING_DB",
    name="FEATURE_STORE_MLDEMO",
    default_warehouse="DEMO_BUILD_WH",
    creation_mode=CreationMode.CREATE_IF_NOT_EXIST,
)

# Register an entity
entity = Entity(
    name="route",
    join_keys=["DATE"],
)
fs.register_entity(entity)

Distributed Feature Engineering

We perform feature engineering to create new features that will be useful for our model. This includes extracting the day of the week and month from the date, and calculating the previous day's ridership. These engineered features are then registered as a FeatureView.

# Perform feature engineering
from snowflake.snowpark.functions import col, to_timestamp, dayofweek, month, sum, lag
from snowflake.snowpark import Window

df = session.read.table('MODEL_SERVING_DB.FEATURE_STORE_MLDEMO.CHICAGO_BUS_RIDES')
df = df.with_column('DATE', to_timestamp(col('DATE'), 'MM/DD/YYYY'))
df = df.with_column('DAY_OF_WEEK', dayofweek(col('DATE')))
df = df.with_column('MONTH', month(col('DATE')))

total_riders = df.group_by('DATE','DAY_OF_WEEK','MONTH').agg(
    F.listagg('DAYTYPE', is_distinct=True).alias('DAYTYPE'),
    F.sum('RIDES').alias('TOTAL_RIDERS')
).order_by('DATE')

window_spec = Window.order_by('DATE')
total_riders = total_riders.with_column('PREV_DAY_RIDERS', lag(col('TOTAL_RIDERS'), 1).over(window_spec))

# Register the feature view
agg_fv = FeatureView(
    name="AggBusData",
    entities=[entity],
    feature_df=total_riders,
    timestamp_col="DATE",
)
agg_fv = fs.register_feature_view(agg_fv, version="1", overwrite=True)

Model Training and Evaluation

With our features ready, we define a machine learning pipeline to preprocess the data and train an XGBoost Regressor model. The model is trained and evaluated in a distributed manner using Snowflake's compute resources.

Create and Train the Model

from snowflake.ml.modeling.compose import ColumnTransformer
from snowflake.ml.modeling.preprocessing import StandardScaler, OrdinalEncoder
from snowflake.ml.modeling.pipeline import Pipeline
from snowflake.ml.modeling.xgboost import XGBRegressor
from snowflake.ml.modeling.model_selection import GridSearchCV

# Define preprocessing steps
numeric_features = ['DAY_OF_WEEK','MONTH','PREV_DAY_RIDERS','MINIMUM_TEMPERATURE','MAXIMUM_TEMPERATURE','PRECIPITATION']
numeric_transformer = Pipeline(steps=[('scaler', StandardScaler())])

categorical_cols = ['DAYTYPE']
categorical_transformer = Pipeline(steps=[('onehot', OrdinalEncoder(handle_unknown='use_encoded_value',unknown_value=-99999))])

preprocessor = ColumnTransformer(
    transformers=[
        ('num', numeric_transformer, numeric_features),
        ('cat', categorical_transformer, categorical_cols)
        ])

pipeline = Pipeline(steps=[('preprocessor', preprocessor),('model', XGBRegressor())])

# Use GridSearchCV for hyperparameter tuning
hyper_param = dict(model__max_depth=[2,4], model__learning_rate=[0.1,0.3])
xg_model = GridSearchCV(
    estimator=pipeline,
    param_grid=hyper_param,
    input_cols=numeric_features + categorical_cols,
    label_cols=['TOTAL_RIDERS'],
    output_cols=["TOTAL_RIDERS_FORECAST"],
)

# Fit the model
xg_model.fit(train)

Model Lineage

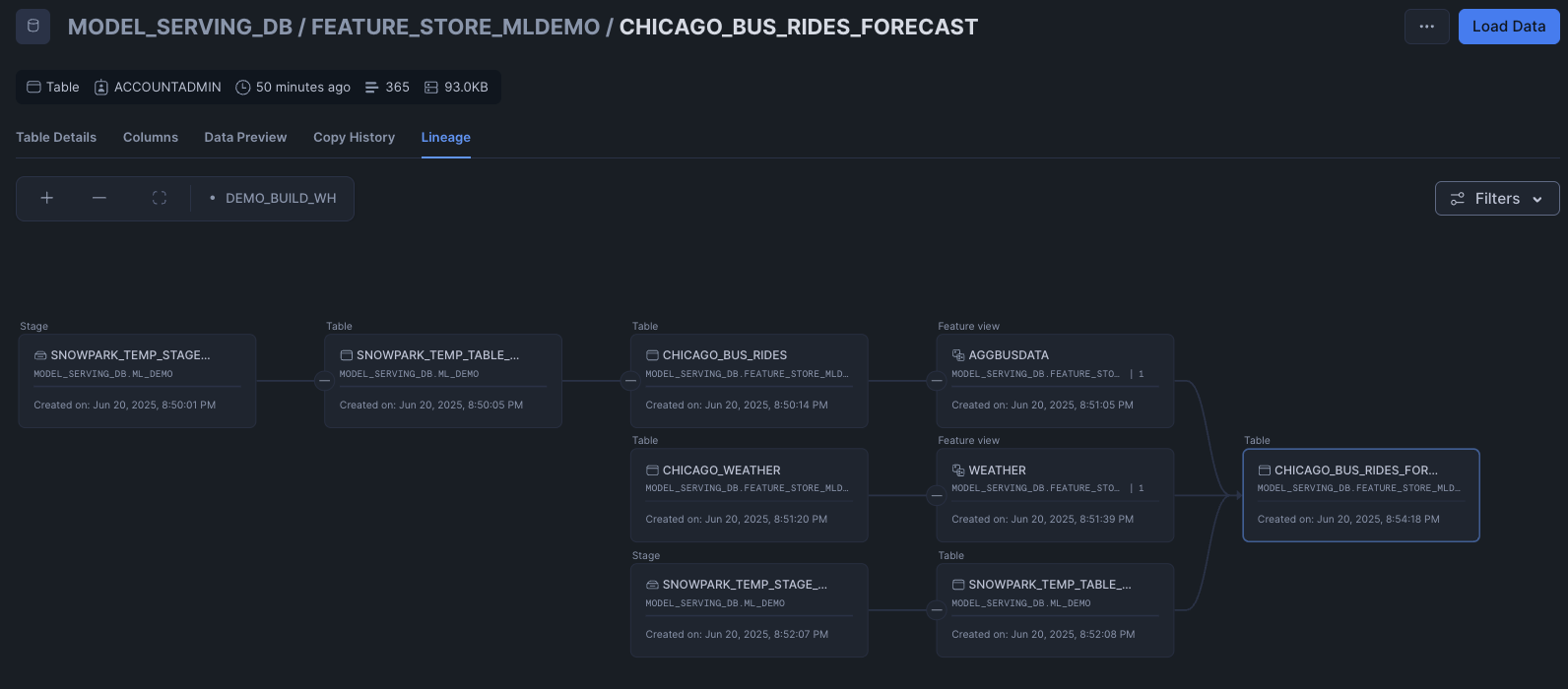

Snowflake's UI provides a graphical representation of the lineage, making it easier to visualize and communicate your findings. To do so, we can go to the CHICAGO_BUS_RIDES_FORECAST table and click on lineage

4_lineage

Evaluate the Model

After training, we evaluate the model's performance on the test set.

from snowflake.ml.modeling.metrics import mean_absolute_error

testpreds = xg_model.predict(test)
print('MSE:', mean_absolute_error(df=testpreds, y_true_col_names='TOTAL_RIDERS', y_pred_col_names='\"TOTAL_RIDERS_FORECAST\"'))

Model Registration and Deployment

Finally, the trained model is logged to the Snowflake Model Registry. This allows for versioning, management, and easy deployment of the model.

model_ref = reg.log_model(
    model_name="Forecasting_Bus_Ridership",
    version_name="v2",
    model=xg_model,
    target_platforms=["WAREHOUSE"],
    conda_dependencies=["scikit-learn","xgboost"],
    sample_input_data=train,
    comment="XGBoost model, Oct 9"
)

reg_model = reg.get_model("Forecasting_Bus_Ridership").version("v2")

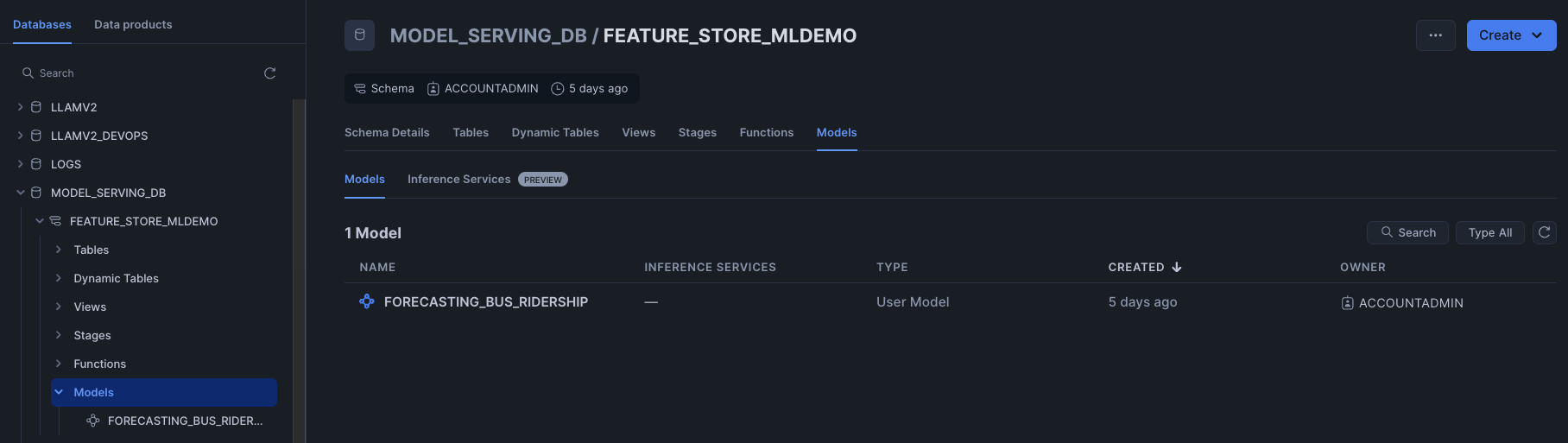

We are able to see the model stored inside the Model tab of the database.

4_model_served

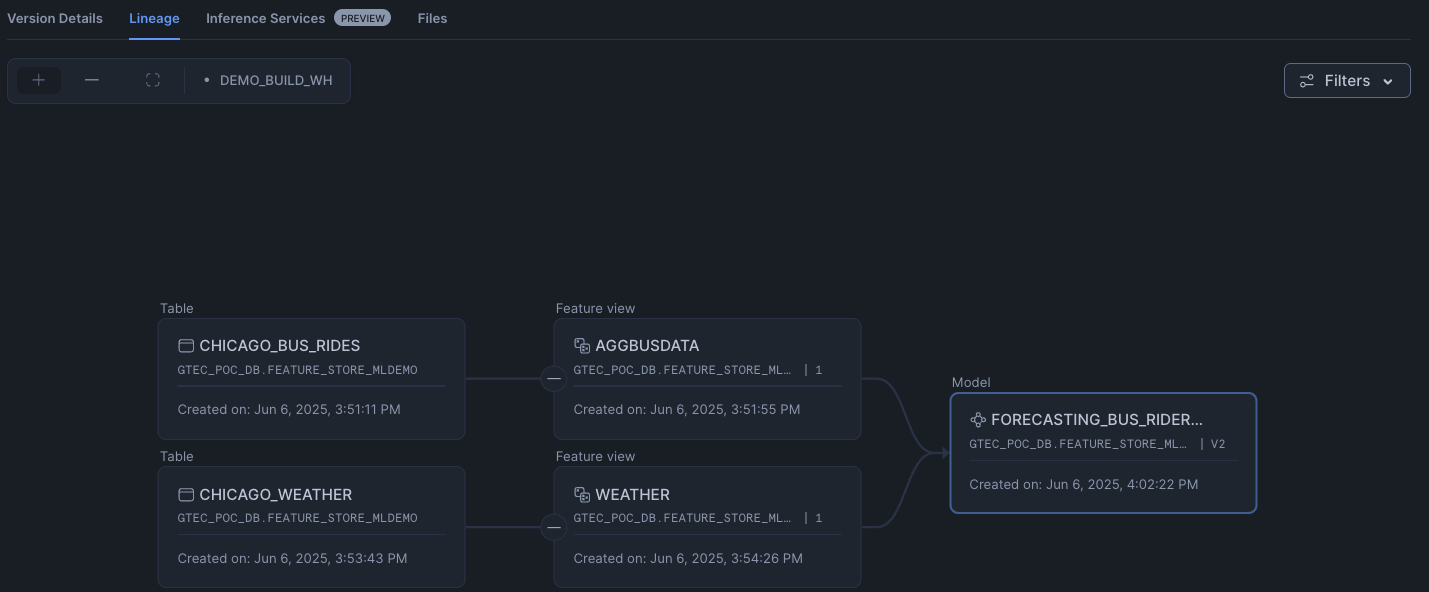

Clicking on the model, we can then further drill down to understand the model such as the model lineage.

4_lineage_model

Deploy to Snowpark Container Services (SPCS)

The registered model can be deployed as a service in SPCS for real-time inference.

reg_model = reg.get_model("Forecasting_Bus_Ridership").version("v2")

reg_model.create_service(service_name="ChicagoBusForecastv12",
                  service_compute_pool="mypool",
                  image_repo="MODEL_SERVING_DB.notebooks.my_inference_images",
                  build_external_access_integration="allow_all_integration",
                  ingress_enabled=True)

Seeing the Inference endpoint

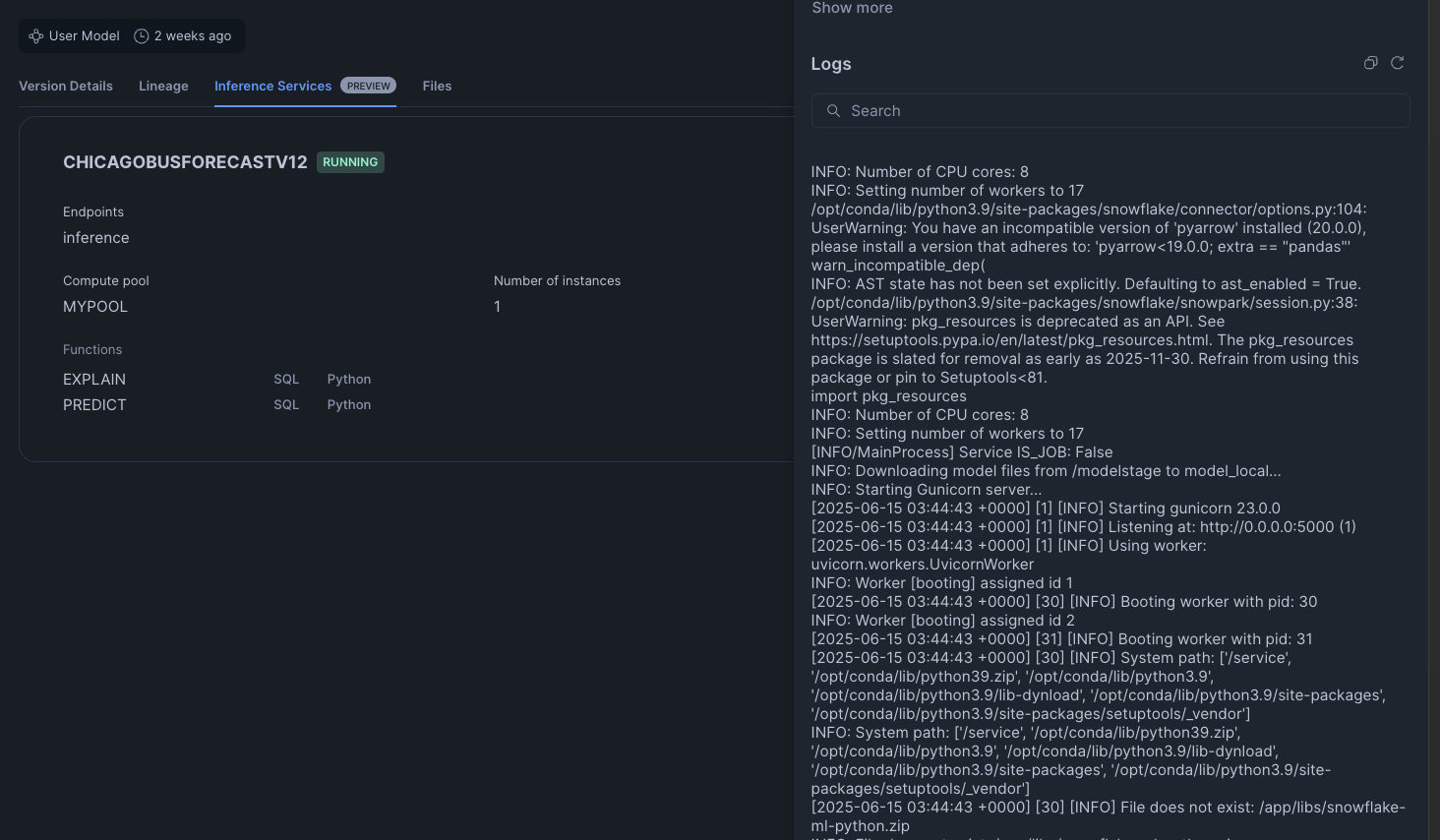

To see our inference endpoint, we can go to our model and click on the Inference Services tab. Opening the details, we can futher view the logs of our inference service

4_inference_serving

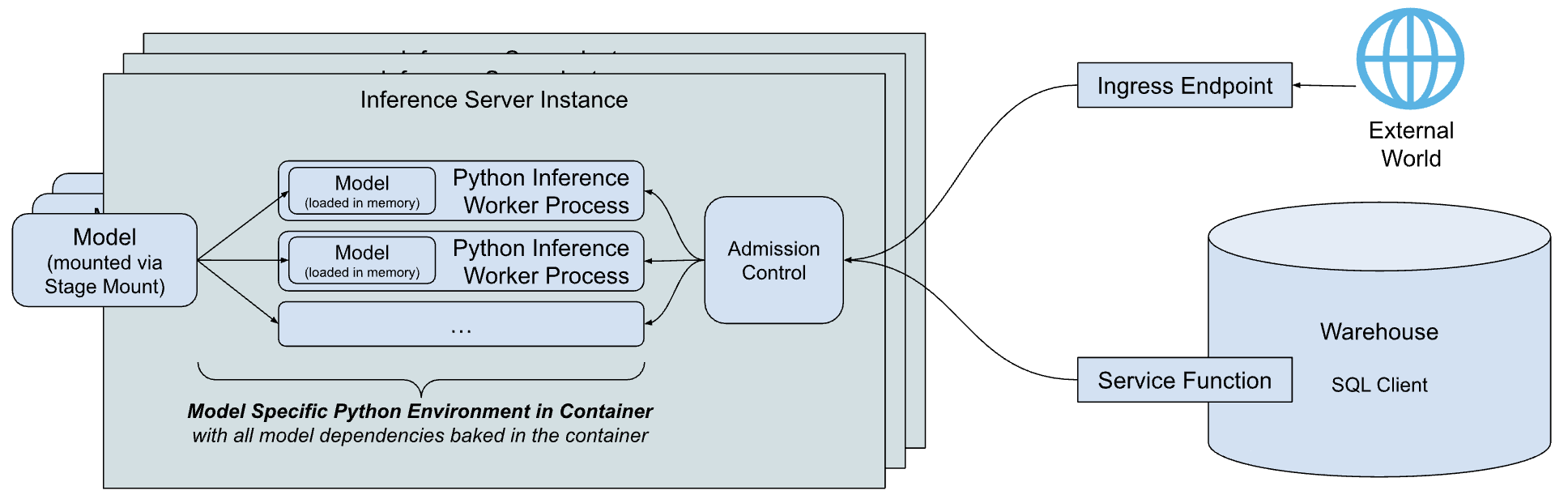

The Snowflake Model Registry, when used with containers, allows you to package, manage, and deploy machine learning models with complex dependencies or custom runtime environments inside Snowflake. This is accomplished by using Snowpark Container Services (SPCS) which we have done above. Some parts of the architecture are as described below.

5_architecture

Our model is now deployed and ready to serve predictions. The service endpoint is secured and requires authentication. We will explore two common methods for accessing it: Key-Pair Authentication for service accounts and Programmatic Access Tokens (PAT) for user-centric access.

First, you need the service's ingress URL. You can find it by running the following SQL command:

SHOW ENDPOINTS IN SERVICE MODEL_SERVING_DB.FEATURE_STORE_MLDEMO.CHICAGOBUSFORECASTV12

The full prediction endpoint will be

https://<YOUR_INGRESS_PATH>/predict

Using Key-Pair Authentication

This method is ideal for applications and service accounts. It involves using a public/private key pair to generate a session token for authentication. We will set up our SnowSQL connection and have a named connection in our SnowSQL config (e.g., ~/.snowsql/config or the ~/.snowflake/connections.toml). In this example our named connection is called "named_connection"

[connections.named_connection]
#Can be used in SnowSql as #connect example
accountname = XXX
username = YYY
role = accountadmin

Once done, save the code inside a file called "KP-app.py" and do "

python KP-app.py

import json
from pprint import pprint
import requests
import snowflake.connector
from snowflake.ml.utils.connection_params import SnowflakeLoginOptions
import pandas as pd
import numpy as np

# --- 1. Connection and Authentication ---
# This part of your code is correct. It gets a valid token.
def initiate_snowflake_connection():
    # IMPORTANT: Ensure "named_connection" is correctly defined in your
    # ~/.snowflake/connections.toml file.
    connection_parameters = SnowflakeLoginOptions("named_connection")
    connection_parameters["session_parameters"] = {"PYTHON_CONNECTOR_QUERY_RESULT_FORMAT": "json"}
    connection_parameters["insecure_mode"] = True  # Disable SSL verification
    snowflake_conn = snowflake.connector.connect(**connection_parameters)
    return snowflake_conn

def get_headers(snowflake_conn):
    token = snowflake_conn._rest._token_request('ISSUE')
    headers = {'Authorization': f'Snowflake Token="{token["data"]["sessionToken"]}"'}
    return headers

print("Connecting to Snowflake to get auth token...")
headers = get_headers(initiate_snowflake_connection())
print("Token acquired successfully.")

# --- 2. Endpoint URL ---
# This must be the public endpoint for your service.
URL = 'https://<YOUR_INGRESS_PATH>/predict'

# --- 3. Preparing our data ---
def prepare_data():
    # Ensure 'test' is defined before this point
    # Assuming 'test' is a Snowpark DataFrame object
    test = [[6 ,7,"A",486139,734535,"USW00014819",22.8,34.4,3.6 ,'2019-07-13'],
[6 ,6,"A",444588,784734,"USW00014819",13.9,21.7,5.1 ,'2019-06-15'],
[4 ,6,"W",780768,765409,"USW00014819",11.1,20.6,0.5 ,'2019-06-13']]

    df = pd.DataFrame(test, columns=['DAY_OF_WEEK' ,'MONTH' ,'DAYTYPE' ,'TOTAL_RIDERS' ,'PREV_DAY_RIDERS' ,'NOAA_WEATHER_STATION_ID' ,'MINIMUM_TEMPERATURE' ,'MAXIMUM_TEMPERATURE' ,'PRECIPITATION' ,'DATE'])
    print(df)

    data = {"data": np.column_stack([range(df.shape[0]), df.values]).tolist()}
    print(data)
    return data

sample_df = prepare_data()


# --- 4. Sending the Request ---
def send_request(data: dict, headers: dict):
    """Posts the data to the URL and handles the response."""
    print("\nSending request to endpoint...")
    try:
        output = requests.post(URL, json=sample_df, headers=headers)

        print("--- Response from Server ---")
        print(f"Status Code: {output.status_code}")

        # Try to print JSON if possible, otherwise print raw text
        try:
            response_json = output.json()
            print("Response JSON:")
            pprint(response_json)
        except json.JSONDecodeError:
            print("Raw Response Text:")
            print(output.text)

        return output

    except requests.exceptions.RequestException as e:
        print(f"An error occurred during the request: {e}")
        return None

# --- Run the request ---

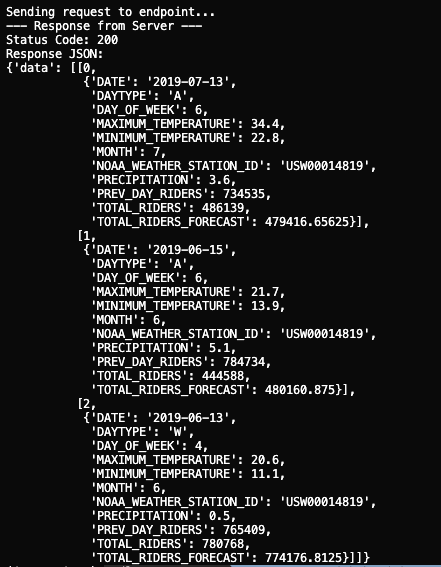

send_request(data=sample_df, headers=headers)

Using Programmatic Access Token (PAT)

PATs are excellent for interactive or user-driven scenarios. A user generates a token in the Snowsight UI and uses it to authenticate.

Setup:

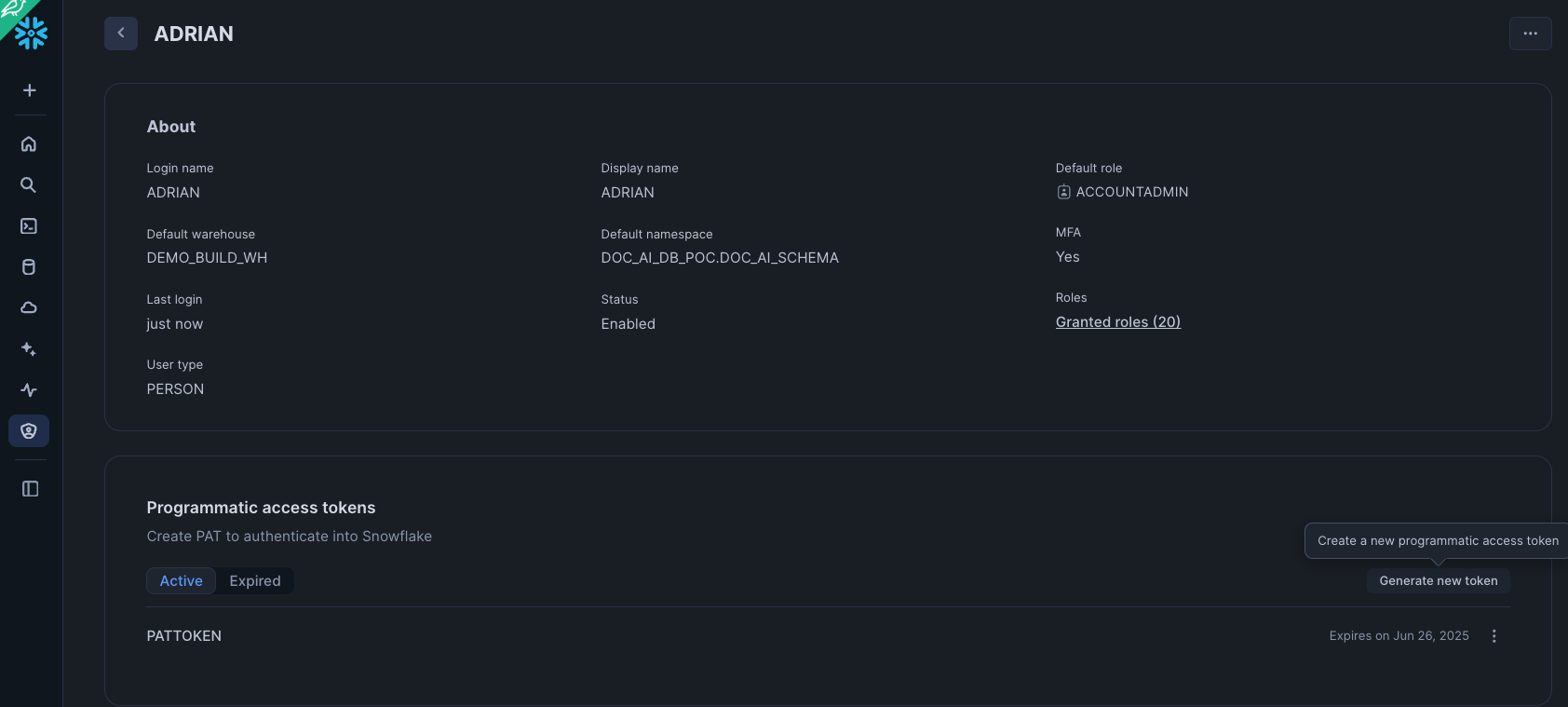

  1. Sign in to Snowsight.
  2. Click on your username in the top left corner, then select My Profile.
  3. In the dialog that appears, scroll down to the Programmatic Access Tokens section.
  4. Click + Generate new token.
  5. Fill in the token details:
  1. Click Generate.
  2. A dialog box will display your new token. This is the only time the token secret will be shown. Copy it immediately.

6_PAT

Once done, save the code below inside a file called "PAT-app.py" and do

python PAT-app.py \
  --account <ACCOUNT_IDENTIFIER> \
  --user <USERNAME>> \
  --role ACCOUNTADMIN \
  --pat <PASS_IN_YOUR_PAT_TOKEN>\
  --endpoint <YOUR_INGRESS_PATH> \
  --endpoint-path /predict

from datetime import timedelta
import argparse
import logging
import sys
import requests
import numpy as np
from pprint import pprint
import json
import pandas as pd

logger = logging.getLogger(__name__)

def main():
    args = _parse_args()
    spcs_access_token = token_exchange_pat(args.pat, endpoint=args.endpoint,
					      role=args.role,
					      snowflake_account_url=args.snowflake_account_url,
      snowflake_account=args.account)
    spcs_url=f'https://{args.endpoint}{args.endpoint_path}'
    connect_to_spcs(spcs_access_token, spcs_url)

def token_exchange_pat(pat, role, endpoint, snowflake_account_url, snowflake_account) -> str:
    scope_role = f'session:role:{role}' if role is not None else None
    scope = f'{scope_role} {endpoint}' if scope_role is not None else endpoint

    data = {
        'grant_type': 'urn:ietf:params:oauth:grant-type:token-exchange',
        'scope': scope,
        'subject_token': pat,
        'subject_token_type': 'programmatic_access_token'
    }
    logger.info(data)
    url = f'https://{snowflake_account}.snowflakecomputing.com/oauth/token'
    if snowflake_account_url:
        url = f'{snowflake_account_url}/oauth/token'
    response = requests.post(url, data=data)
    logger.info("snowflake token : %s" % response.text)
    logger.info("snowflake token response code : %s" % response.status_code)
    assert 200 == response.status_code, "unable to get snowflake token"
    return response.text


def prepare_data():
    # Ensure 'test' is defined before this point
    # Assuming 'test' is a Snowpark DataFrame object
    test = [[6 ,7,"A",486139,734535,"USW00014819",22.8,34.4,3.6 ,'2019-07-13'],
[6 ,6,"A",444588,784734,"USW00014819",13.9,21.7,5.1 ,'2019-06-15'],
[4 ,6,"W",780768,765409,"USW00014819",11.1,20.6,0.5 ,'2019-06-13']]

    df = pd.DataFrame(test, columns=['DAY_OF_WEEK' ,'MONTH' ,'DAYTYPE' ,'TOTAL_RIDERS' ,'PREV_DAY_RIDERS' ,'NOAA_WEATHER_STATION_ID' ,'MINIMUM_TEMPERATURE' ,'MAXIMUM_TEMPERATURE' ,'PRECIPITATION' ,'DATE'])
    print(df)

    data = {"data": np.column_stack([range(df.shape[0]), df.values]).tolist()}
    print(data)
    return data


def connect_to_spcs(token, url):
  # Create a request to the ingress endpoint with authz.
  headers = {'Authorization': f'Snowflake Token="{token}"'}
  logger.info(url)
  request_body = prepare_data()  # Convert the DataFrame to the right format
  print (request_body)
  response = requests.post(f'{url}',data=json.dumps(request_body), headers=headers)     #data=json.dumps(request_body)
  #assert (response.status_code == 200), f"Failed to get response from the service. Status code: {response.status_code}"
  #return response.content
  logger.info("return code %s" % response.status_code)
  logger.info(response.text)
  logger.info(response.content)
  logger.debug(response.content)

def _parse_args():
  logging.basicConfig(stream=sys.stdout, level=logging.INFO)
  cli_parser = argparse.ArgumentParser()
  cli_parser.add_argument('--account', required=True,
              help='The account identifier (for example, "myorganization-myaccount" for '
                '"myorganization-myaccount.snowflakecomputing.com").')
  cli_parser.add_argument('--user', required=True, help='The user name.')
  cli_parser.add_argument('--role',
              help='The role we want to use to create and maintain a session for. If a role is not provided, '
                'use the default role.')
  cli_parser.add_argument('--endpoint', required=True,
              help='The ingress endpoint of the service')
  cli_parser.add_argument('--endpoint-path', default='/',
              help='The url path for the ingress endpoint of the service')
  cli_parser.add_argument('--snowflake_account_url', default=None,
              help='The account url of the account for which we want to log in. Type of '
                'https://myorganization-myaccount.snowflakecomputing.com')
  cli_parser.add_argument('--pat',
                            help='PAT for the user.')
  args = cli_parser.parse_args()
  return args


if __name__ == "__main__":
    main()

If all is well you should get a response like below

7_response

Congratulations! You have successfully built, deployed, and accessed a machine learning model using Snowpark Container Services. You've seen how Snowflake can manage the entire MLOps lifecycle within a single, unified platform, from data engineering to production deployment.

This powerful combination of Snowpark, the Model Registry, and SPCS enables data teams to build and scale AI/ML applications securely and efficiently.

What You Learned

Related Resources
