This Quickstart guide is the second in a series of Collaboration & Applications in Snowflake. Part One of the series can be found here

In Part One, we showed how using Snowflake's unique collaboration features, we could:

In this Quickstart, we will show how we can leverage the Native Apps Framework to simplify this process even further.

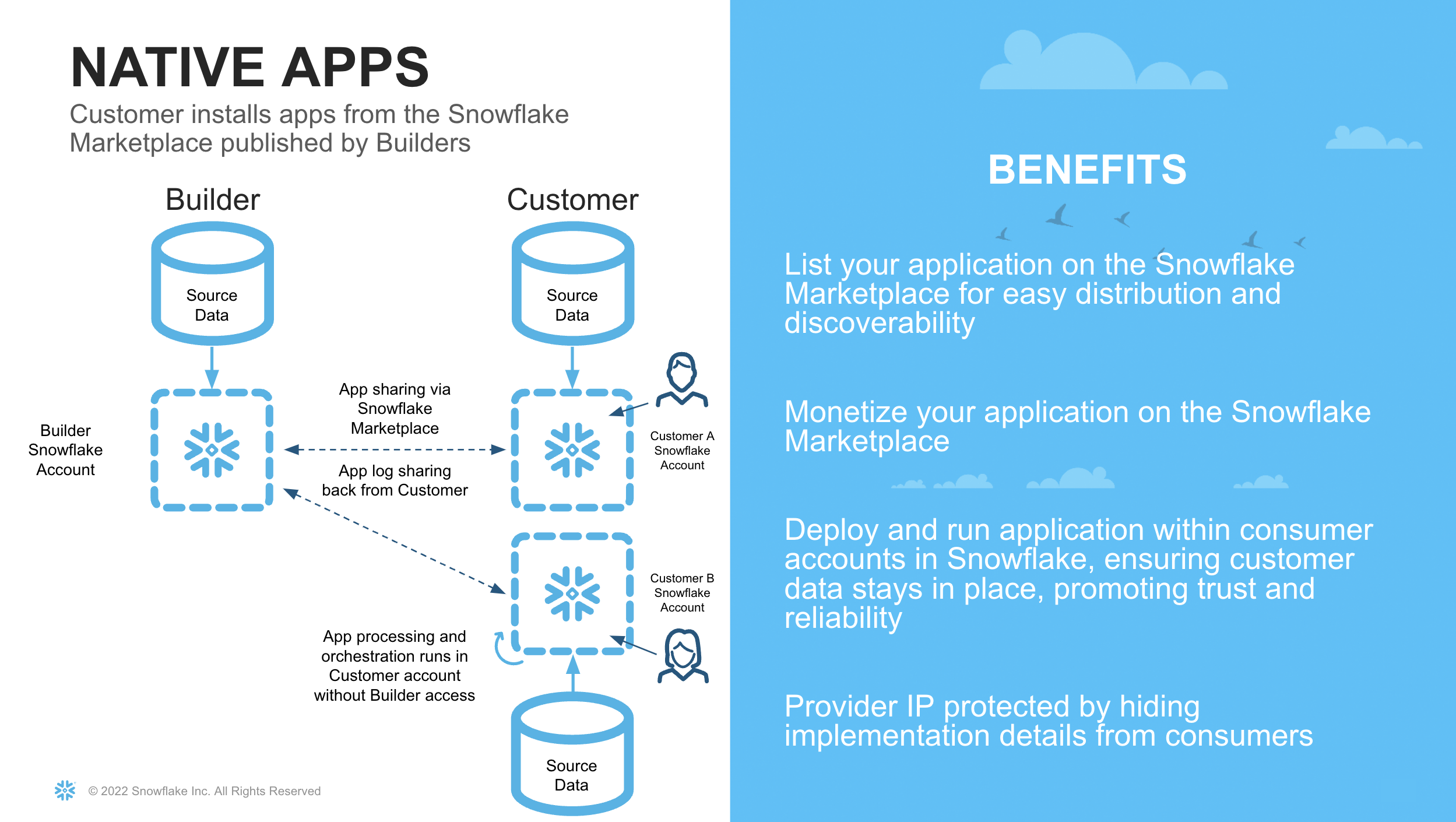

The Native App Framework is a collaboration framework that allows providers to share data and/or related business logic to other Snowflake customers. In the previous Quickstart guide, we set up a bi-directional share between two organisations. With the Native App framework, we can simplify this relationship by allowing one party to share its logic in the form of an application to the other. Therefore, we have brought the app to the data, as opposed to bringing the data to the app

Diagram

There are numerous benefits to leveraging the Native App framework for our Use Case. For example:

What You Will Learn

What You Will Build

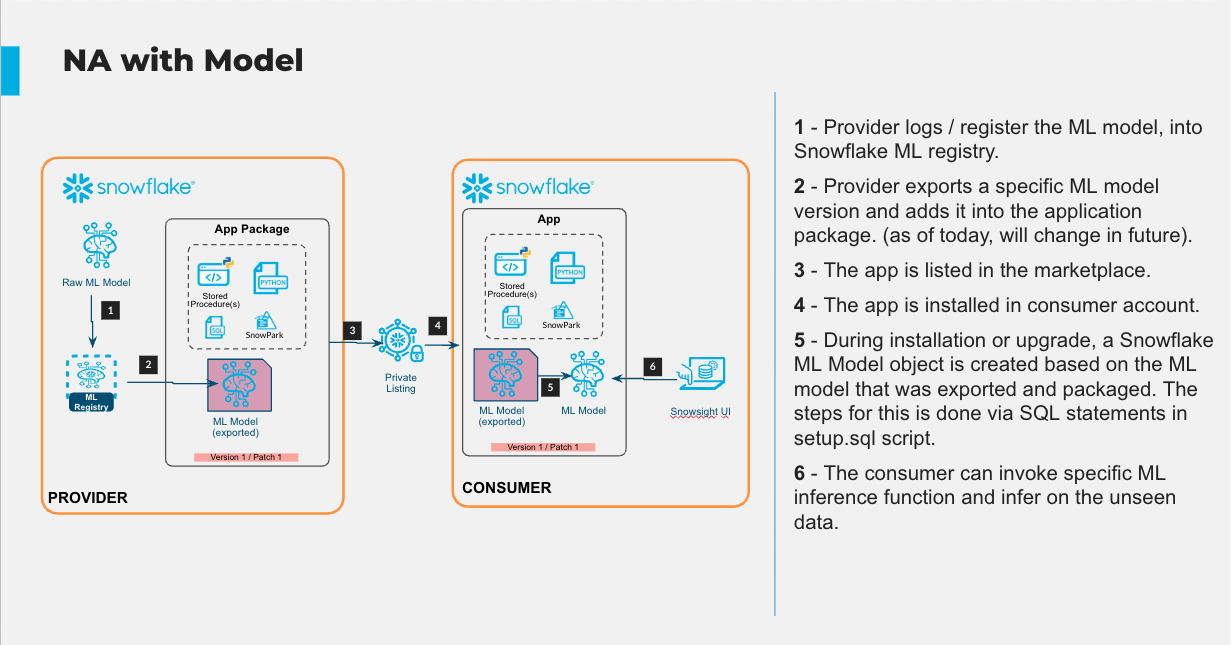

The architecture of what we will build is shown below

Diagram

Prerequisites

The Business Use case follows a similar scenario as Part One.

In this guide, we are playing the role of Zamboni and Snowbank. The Credit Risk team at Snowbank has noticed a rise in credit card default rates which affects the bottom line of the business. Previously, it has shared data with an external organisation (Zamboni) who assist with analysing the data and scoring which customers are most likely to default.

This time, the compliance team has said that it is too risky to share this customer data with an external party without proper procedures being followed, which could take a few months to complete. Zamboni have proposed a solution that utilises the Native Application Framework.

Since both companies use Snowflake, Zamboni has proposed sharing their proprietary Credit Default Scoring Model via the Native Application Framework. The advantages of doing this for Snowbank are:

The advantages for Zamboni are:

What is different in this scenario compared to Part One, is that it is no longer a bi-directional share of data. Now Zamboni becomes the provider of an Application, and Snowbank becomes the consumer.

Dataset Details

We will use a publicly available dataset to train our ML model for the purposes of this demo. The dataset contains aggregated profile features for each customer at each statement date. Features are anonymized and normalized, and fall into the following general categories:

D_* = Delinquency variables S_* = Spend variables P_* = Payment variables B_* = Balance variables R_* = Risk variables

Dataset Citation

Addison Howard, AritraAmex, Di Xu, Hossein Vashani, inversion, Negin, Sohier Dane. (2022). American Express - Default Prediction. Kaggle. https://kaggle.com/competitions/amex-default-prediction

Navigate to the Snowflake Trial Landing Page. Follow the prompts to create a Snowflake Account. You should receive an email to activate your trial account.

Navigate to a new worksheet and execute the following commands to create a second account in the Organisation. The second account will be the account we share the model to (Snowbank). In trial accounts we cannot share the Native App externally, although the same process can be followed to share the app externally if you have a non-trial account.

USE ROLE ORGADMIN;

CREATE ACCOUNT SNOWBANK
  ADMIN_NAME = ADMIN
  ADMIN_PASSWORD = 'ENTER PASSWORD HERE'
  EMAIL = 'ENTER YOUR EMAIL HERE'
  EDITION = ENTERPRISE;

Note down the account locator and the url from the output of the command above for use in later steps

Provider Account (Zamboni)

In this part of the lab we'll set up our Provider Snowflake account. In our business scenario, this step represents Zamboni developing their proprietary Credit Card Default model from their own datasets. Stay in the same account from the previous section.

Initial Set Up

Next, open up a new worksheet and run all following steps as the ACCOUNTADMIN role

  -- Change role to accountadmin
  USE ROLE ACCOUNTADMIN;

Next we create two Virtual Warehouses that can be used to load the initial dataset, and do our model training respectively.

-- Create a virtual warehouse for loading and ad-hoc queries
CREATE OR REPLACE WAREHOUSE QUERY_WH WITH
  WAREHOUSE_SIZE = 'X-SMALL'
  WAREHOUSE_TYPE = 'STANDARD'
  AUTO_SUSPEND = 300
  AUTO_RESUME = TRUE
  MIN_CLUSTER_COUNT = 1
  MAX_CLUSTER_COUNT = 1;

-- Create a virtual warehouse for training
CREATE OR REPLACE WAREHOUSE training_wh with
  WAREHOUSE_SIZE = 'MEDIUM'
  WAREHOUSE_TYPE = 'snowpark-optimized'
  MAX_CLUSTER_COUNT = 1
  AUTO_SUSPEND = 300
  AUTO_RESUME = TRUE;

Load Data

Next we will create a database and schema that will house the tables to train our model.

-- Create the application database and schema
CREATE OR REPLACE DATABASE NATIVE_APP_DEMO;
CREATE OR REPLACE SCHEMA NATIVE_APP_DEMO;
USE SCHEMA NATIVE_APP_DEMO.NATIVE_APP_DEMO;

Our data is in Parquet format, so we will create a file format object

CREATE OR REPLACE FILE FORMAT parquet_format
TYPE = PARQUET;

Next we set up our External Stage to our data. In our business scenario, we would have a secure Storage Integration to the external stage rather than a public s3 bucket.

CREATE OR REPLACE STAGE quickstart_cc_default_training_data
    URL = 's3://sfquickstarts/two_way_data_share/train/'
    FILE_FORMAT = parquet_format;

This DDL will create the structure for the table which is the main source of data for our lab.

CREATE OR REPLACE TABLE cc_default_training_data
  USING TEMPLATE (
    SELECT ARRAY_AGG(OBJECT_CONSTRUCT(*))
      FROM TABLE(
        INFER_SCHEMA(
          LOCATION=>'@quickstart_cc_default_training_data',
          FILE_FORMAT=>'parquet_format'
        )
      ));

Now we will load the data in the tables. We can scale up the warehouse temporarily so we do not have to wait as long

ALTER WAREHOUSE query_wh SET warehouse_size=MEDIUM;

The code below loads the data in to the tables.

COPY INTO cc_default_training_data
  FROM @quickstart_cc_default_training_data
  FILE_FORMAT = (FORMAT_NAME= 'parquet_format')
  MATCH_BY_COLUMN_NAME=CASE_INSENSITIVE;

We can now scale down the warehouse since we have finished loading data for the lab

ALTER WAREHOUSE query_wh SET warehouse_size=XSMALL;

You should have loaded over 5.5 million rows in a few minutes. To check, query the data in the worksheet

SELECT COUNT(*)
  FROM CC_DEFAULT_TRAINING_DATA;

We have loaded all the data in Zamboni. We can now proceed with training the model

Provider Account (Zamboni)

For this section, make sure you download the corresponding git repo so you have the files referenced in this section.

Set Up Snowpark for Python and Snowpark ML

The first step is to set up the python environment to develop our model. To do this:

{
  "account"        : "<your_account_identifier_goes_here>",
  "user"           : "<your_username_goes_here>",
  "password"       : "<your_password_goes_here>",
  "role"           : "ACCOUNTADMIN",
  "warehouse"      : "QUERY_WH",
  "database"       : "NATIVE_APP_DEMO",
  "schema"         : "NATIVE_APP_DEMO"
}

You can find your account identifier by running the following SQL

SELECT CURRENT_ORGANIZATION_NAME() || '-' || CURRENT_ACCOUNT_NAME();

Train and Register Model

Open up the Credit Card Default Native App notebook and follow the steps. Once you have completed those, you will have trained and deployed a ML Model in Snowflake that predicts credit card default risk. You will also have registered the model in the Snowflake Model Registry.

Stay in the Zamboni account for the next step.

Provider Account (Zamboni)

Now we have trained the model, we want to encapsulate it in an Application Package, so we can distribute it via the Native App Framework. More information on the Native Application framework can be found in the documentation here. We will be working through the Native App Development Workflow.

Continue to work through the python notebook. The SQL commands below can be run from the python notebook.

The next step is to create an Application Package object that will hold the assets we wish to distribute to Snowbank. An Application Package encapsulates the data content, application logic, metadata, and setup script required by an application. An Application Package also contains information about versions and patch levels defined for the application. We do this by running the following SQL.

GRANT CREATE APPLICATION PACKAGE ON ACCOUNT TO ROLE ACCOUNTADMIN;
CREATE APPLICATION PACKAGE IF NOT EXISTS CREDIT_CARD_PREDICTION_APP_PACKAGE;
SHOW APPLICATION PACKAGES;

Next, we need to create a stage within the Application Package for us to put our model assets. We run the following SQL commands

USE APPLICATION PACKAGE CREDIT_CARD_PREDICTION_PACKAGE;
CREATE SCHEMA IF NOT EXISTS MODEL_ASSETS;
CREATE OR REPLACE STAGE CREDIT_CARD_PREDICTION_APP_PACKAGE.MODEL_ASSETS.MODEL_STAGE FILE_FORMAT = (TYPE = 'csv' FIELD_DELIMITER = '|' SKIP_HEADER = 1);

So we share a model that is consistent with what is in the model registry, we are going to export the model from the registry, and put it in the Application Package. We do this in the following code block

# Retrieve the model from the registry
m = registry.get_model("NATIVE_APP_DEMO.NATIVE_APP_DEMO.CREDIT_CARD_DEFAULT_MODEL")
mv = m.version("default")

# Create a temp directory to export the model
import tempfile, pathlib, shutil, os
local_dir = pathlib.Path(tempfile.mkdtemp(prefix="model_export_"))

# export the full artefact set into that folder
mv.export(local_dir.as_posix(), export_mode=ExportMode.FULL)

# Upload the files and folder structure to the Application Package Stage
stage_root = "@CREDIT_CARD_PREDICTION_PACKAGE.MODEL_ASSETS.MODEL_STAGE/models"

for file_path in pathlib.Path(local_dir).rglob('*'):
    if file_path.is_file():
        rel_path = file_path.relative_to(local_dir).as_posix()   # e.g. runtimes/env.yml or manifest.yml
        subdir   = os.path.dirname(rel_path)                     # '' or 'runtimes'

        # remote prefix **must end with a slash** and contain no file-name
        remote_prefix = f"{stage_root}/{subdir}/" if subdir else f"{stage_root}/"

        session.file.put(
            file_path.as_posix(),
            remote_prefix,
            overwrite=True,
            auto_compress=False
        )

# Check that all our artefacts have been uploaded
session.sql("LIST @CREDIT_CARD_PREDICTION_PACKAGE.MODEL_ASSETS.MODEL_STAGE/models;").collect()

An application requires a manifest file, and a setup script (as outlined in the Native App Development Workflow). We upload them to our Application Package in the following commands

PUT file://scripts/setup.sql @CREDIT_CARD_PREDICTION_APP_PACKAGE.MODEL_ASSETS.MODEL_STAGE/scripts overwrite=true auto_compress=false;

PUT file://manifest.yml @CREDIT_CARD_PREDICTION_APP_PACKAGE.MODEL_ASSETS.MODEL_STAGE overwrite=true auto_compress=false;

The setup script contains the SQL statements that define the components created when a consumer installs your application. For us, this will include creating stored procedures to perform feature engineering, as well as registering our model for the app to use on the consumer side (documentation here). This is done in the following lines that were run as part of setup.sql on installation of the app:

create or replace model APP_CODE.CREDIT_CARD_DEFAULT_MODEL from @CREDIT_CARD_PREDICTION_PACKAGE.MODEL_ASSETS.MODEL_STAGE/models/;

grant usage on model APP_CODE.CREDIT_CARD_DEFAULT_MODEL to application role app_user;

Provider Account (Zamboni)

Now the Application has been created from the Application Package in our Provider Account, we can perform some testing to ensure it behaves as expected. In this Quickstart, we have exposed more views and functions than what is necessary, so we can follow along and see how the app in functioning.

You will need a SQL worksheet for this part of the Quickstart. We can load some testing data by executing the following:

USE SCHEMA NATIVE_APP_DEMO.NATIVE_APP_DEMO;

CREATE OR REPLACE STAGE quickstart_cc_default_unscored_data
    URL = 's3://sfquickstarts/two_way_data_share/unscored/'
    FILE_FORMAT = parquet_format;

-- Create below to be the template of the above (without the target column)
CREATE OR REPLACE TABLE cc_default_unscored_data LIKE cc_default_training_data;
ALTER TABLE cc_default_unscored_data DROP COLUMN "target";

ALTER WAREHOUSE query_wh SET warehouse_size=MEDIUM;

USE WAREHOUSE query_wh;

COPY INTO cc_default_unscored_data
  FROM @quickstart_cc_default_unscored_data
  FILE_FORMAT = (FORMAT_NAME= 'parquet_format')
  MATCH_BY_COLUMN_NAME=CASE_INSENSITIVE;

ALTER WAREHOUSE query_wh SET warehouse_size=XSMALL;

This app requires the consumer to explicitly provide a reference to a table in the Snowflake instance it is installed as an input. References are a way for Native App consumers to be explicit in their permissioning to any existing object in a Snowflake account that is required. This ensures that Native Applications run as "isolated objects" within a Consumer Account, and must be granted explicit permission to access other objects. More information can be foind here. We can achieve referencing through the UI, or running the following SQL.

-- Bind the reference to a table in our own Snowflake Account. This can be done via SQL or the UI
CALL credit_card_prediction_app.app_code.register_single_reference('RAW_TABLE' , 'ADD', SYSTEM$REFERENCE('TABLE', 'NATIVE_APP_DEMO.NATIVE_APP_DEMO.CC_DEFAULT_UNSCORED_DATA', 'PERSISTENT', 'SELECT'));

-- Check that the reference worked
SHOW REFERENCES IN APPLICATION credit_card_prediction_app;

Next let's run through the commands and see if they are working as expected. Note that we are running code inside an isolated Application object. This application object will eventually be shared with our consumer (Snowbank).

-- This should be empty, as we have not called the procedure to populate the table yet
SELECT * FROM CREDIT_CARD_PREDICTION_APP.APP_CODE.RAW_TABLE_VIEW;

-- Now we call the procedure
CALL CREDIT_CARD_PREDICTION_APP.APP_CODE.CREATE_TABLE_FROM_REFERENCE_RAW();

-- And the table should now be populated
SELECT * FROM CREDIT_CARD_PREDICTION_APP.APP_CODE.RAW_TABLE_VIEW LIMIT 10;
SELECT COUNT(*) FROM CREDIT_CARD_PREDICTION_APP.APP_CODE.RAW_TABLE_VIEW;

-- Next we call the procedure to do the feature engineering. This will take 5 mins to complete
CALL CREDIT_CARD_PREDICTION_APP.APP_CODE.CC_PROFILE_PROCESSING();

-- The feature table should now be populated
SELECT * FROM CREDIT_CARD_PREDICTION_APP.APP_CODE.TRANSFORMED_TABLE_VIEW LIMIT 10;

-- Next we call the procedure that infers our model
USE WAREHOUSE TRAINING_WH;
CALL CREDIT_CARD_PREDICTION_APP.APP_CODE.CC_BATCH_PROCESSING();

-- And we can now see the scored table
SELECT * FROM CREDIT_CARD_PREDICTION_APP.APP_CODE.SCORED_TABLE_VIEW LIMIT 10;

We are satisfied with the testing. The next step is to distribute the app.

Provider Account (Zamboni)

We need to create a version before and a release directive before we can share. We can do this in the manifest file, or with the code below

ALTER APPLICATION PACKAGE CREDIT_CARD_PREDICTION_PACKAGE
  ADD VERSION v1
  USING '@CREDIT_CARD_PREDICTION_PACKAGE.MODEL_ASSETS.MODEL_STAGE'
  LABEL = 'Credit Card Default Model Version 1.0';

SHOW VERSIONS IN APPLICATION PACKAGE CREDIT_CARD_PREDICTION_PACKAGE;

Below is how we set a Release Directive. A Release Directive is a way for Providers to control which Apps versions are available for their consumers. More information can be found in the documentation

ALTER APPLICATION PACKAGE CREDIT_CARD_PREDICTION_PACKAGE
  SET DEFAULT RELEASE DIRECTIVE
  VERSION = v1
  PATCH = 0;

Now we can distribute the app to our consumer - Snowbank.

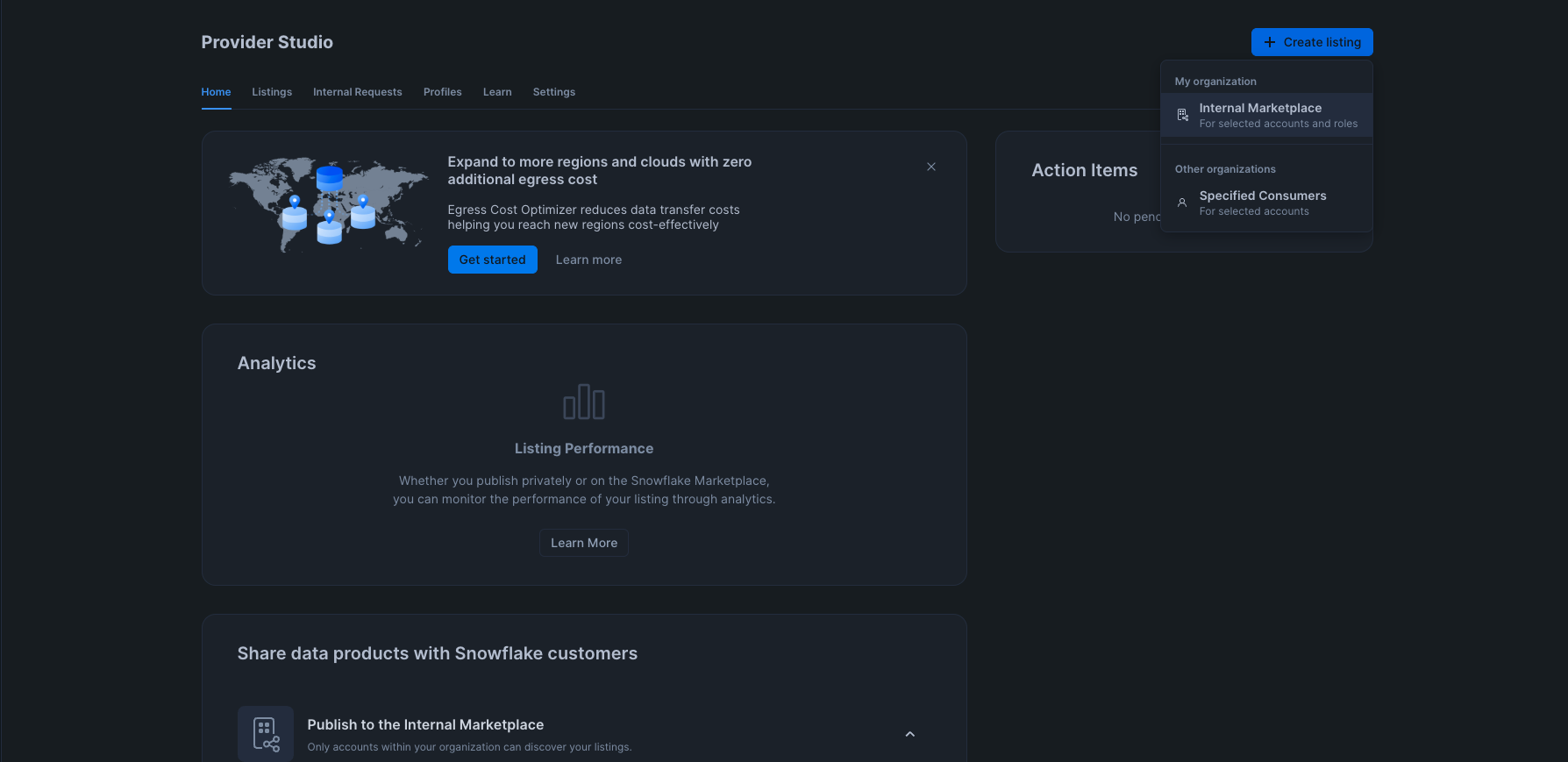

On the left panel, navigate to Data Products > Provider Studio

Select Create Listing > Internal Listing

Diagram

Fill in the name of the listing in the UI as "Credit Card Default Model". Then select "Add data product"

Diagram

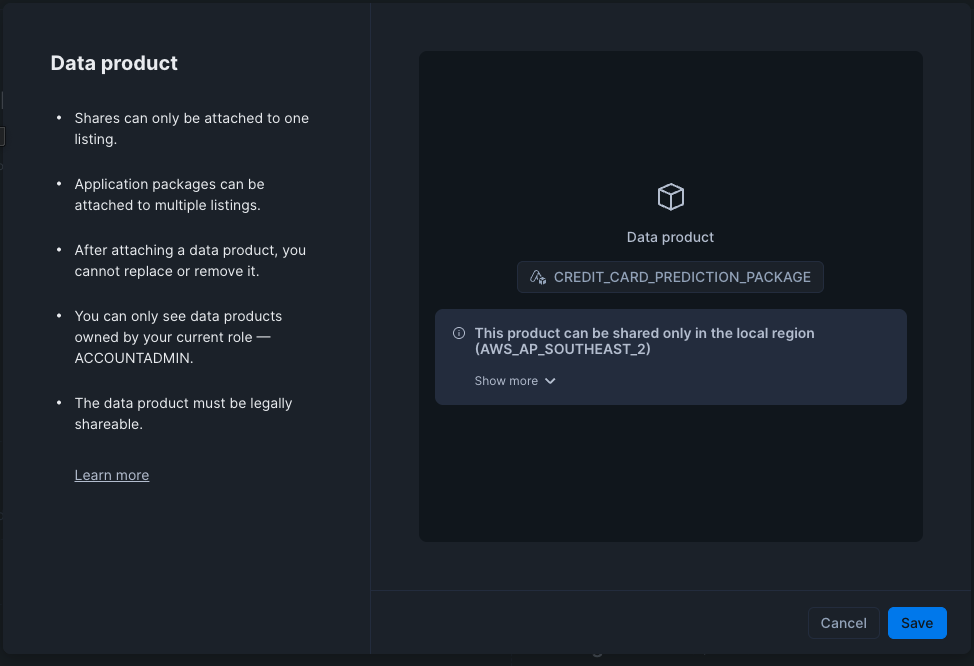

Select the CREDIT_CARD_PREDICTION_PACKAGE, and click save.

Select "Access Control" to open up the modal. Under "Who can access this data product?" select "Selected accounts and roles". In the Accounts dropdown, select SNOWBANK.

For the Allow Discovery section, select "Not discoverable by users without access".

Click Save

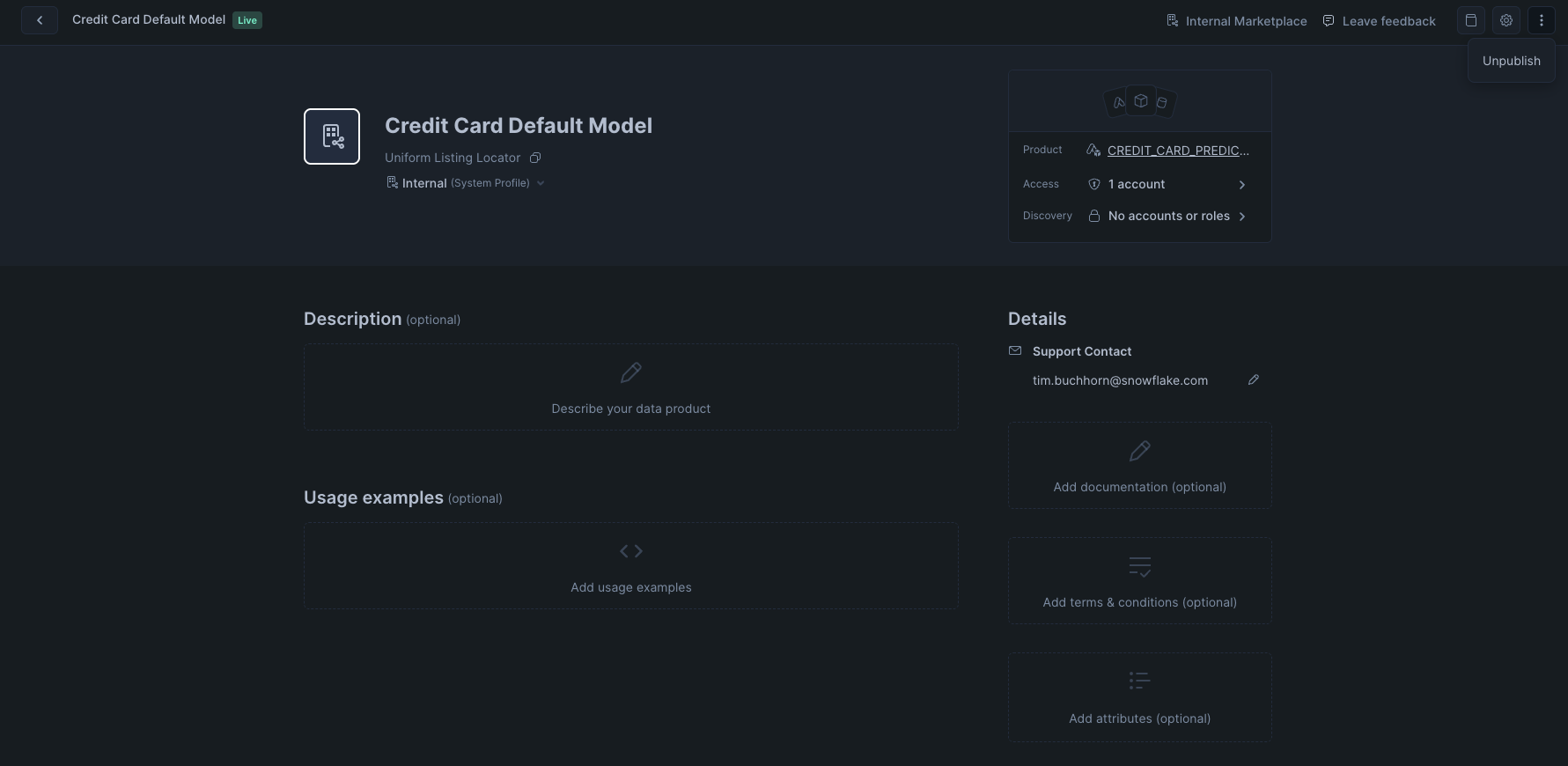

Diagram

Add a support email to the listing.

Finally, click Publish.

In this next step, we will log in to our consumer account (Snowbank). You should have saved the details such as the account URL and username from step 3. Log in to the Snowbank Account, and follow the steps to reset your password.

Next, lets ingest the data into this completely separate account by running the following commands in a SQL worksheet.

Setup and Load Data

USE ROLE ACCOUNTADMIN;

CREATE OR REPLACE WAREHOUSE QUERY_WH WITH
  WAREHOUSE_SIZE = 'X-SMALL'
  WAREHOUSE_TYPE = 'STANDARD'
  AUTO_SUSPEND = 300
  AUTO_RESUME = TRUE
  MIN_CLUSTER_COUNT = 1
  MAX_CLUSTER_COUNT = 1;

CREATE OR REPLACE DATABASE NATIVE_APP_CONSUMER;
CREATE OR REPLACE SCHEMA NATIVE_APP_CONSUMER;
USE SCHEMA NATIVE_APP_CONSUMER.NATIVE_APP_CONSUMER;

CREATE OR REPLACE FILE FORMAT parquet_format
TYPE = PARQUET;

CREATE OR REPLACE STAGE quickstart_cc_default_unscored_data
    URL = 's3://sfquickstarts/two_way_data_share/unscored/'
    FILE_FORMAT = parquet_format;

CREATE OR REPLACE TABLE cc_default_unscored_data
  USING TEMPLATE (
    SELECT ARRAY_AGG(OBJECT_CONSTRUCT(*))
      FROM TABLE(
        INFER_SCHEMA(
          LOCATION=>'@quickstart_cc_default_unscored_data',
          FILE_FORMAT=>'parquet_format'
        )
      ));

ALTER WAREHOUSE query_wh SET warehouse_size=MEDIUM;

COPY INTO cc_default_unscored_data
  FROM @quickstart_cc_default_unscored_data
  FILE_FORMAT = (FORMAT_NAME= 'parquet_format')
  MATCH_BY_COLUMN_NAME=CASE_INSENSITIVE;

ALTER WAREHOUSE query_wh SET warehouse_size=XSMALL;

Accept Shared Model

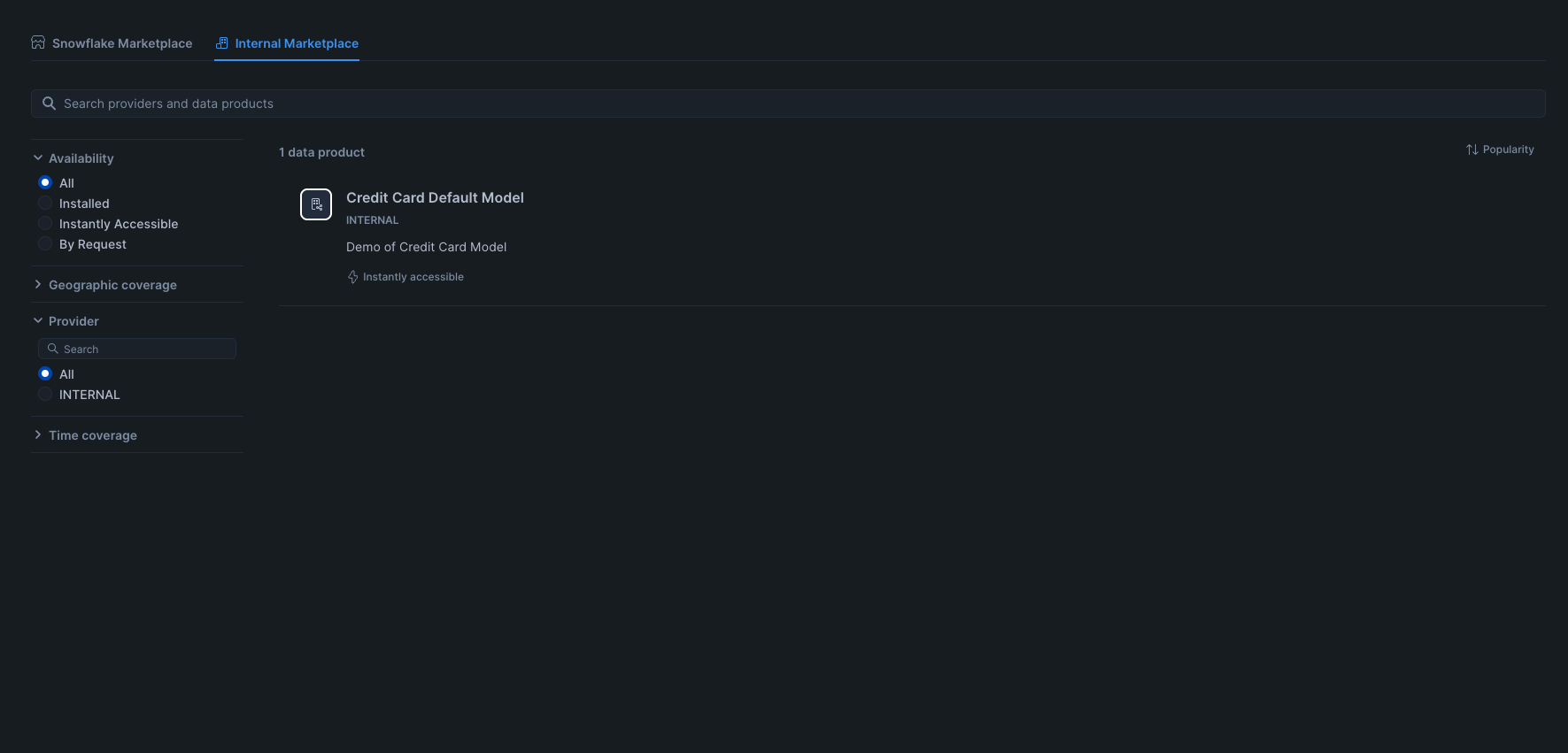

On the left menu, navigate through to Data Products > Marketplace. Then select the Internal Marketplace tab. You should see your app ready to be installed.

Diagram

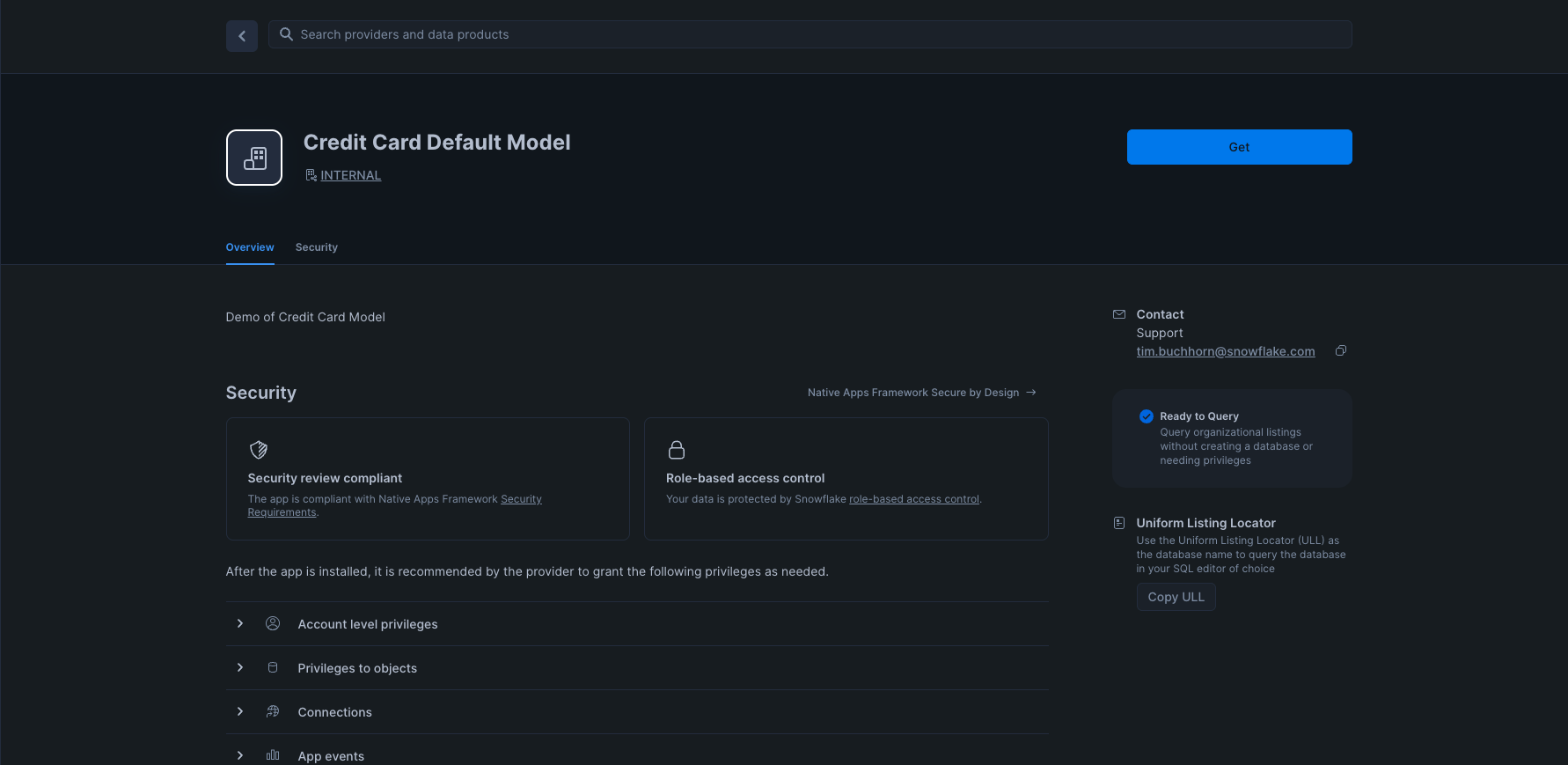

Select Credit Card Default Model, and on the next screen, select Get. If you do not see the Get button, ensure that you are operating as the ACCOUNTADMIN role. Wait for it to install, and then click "Configure".

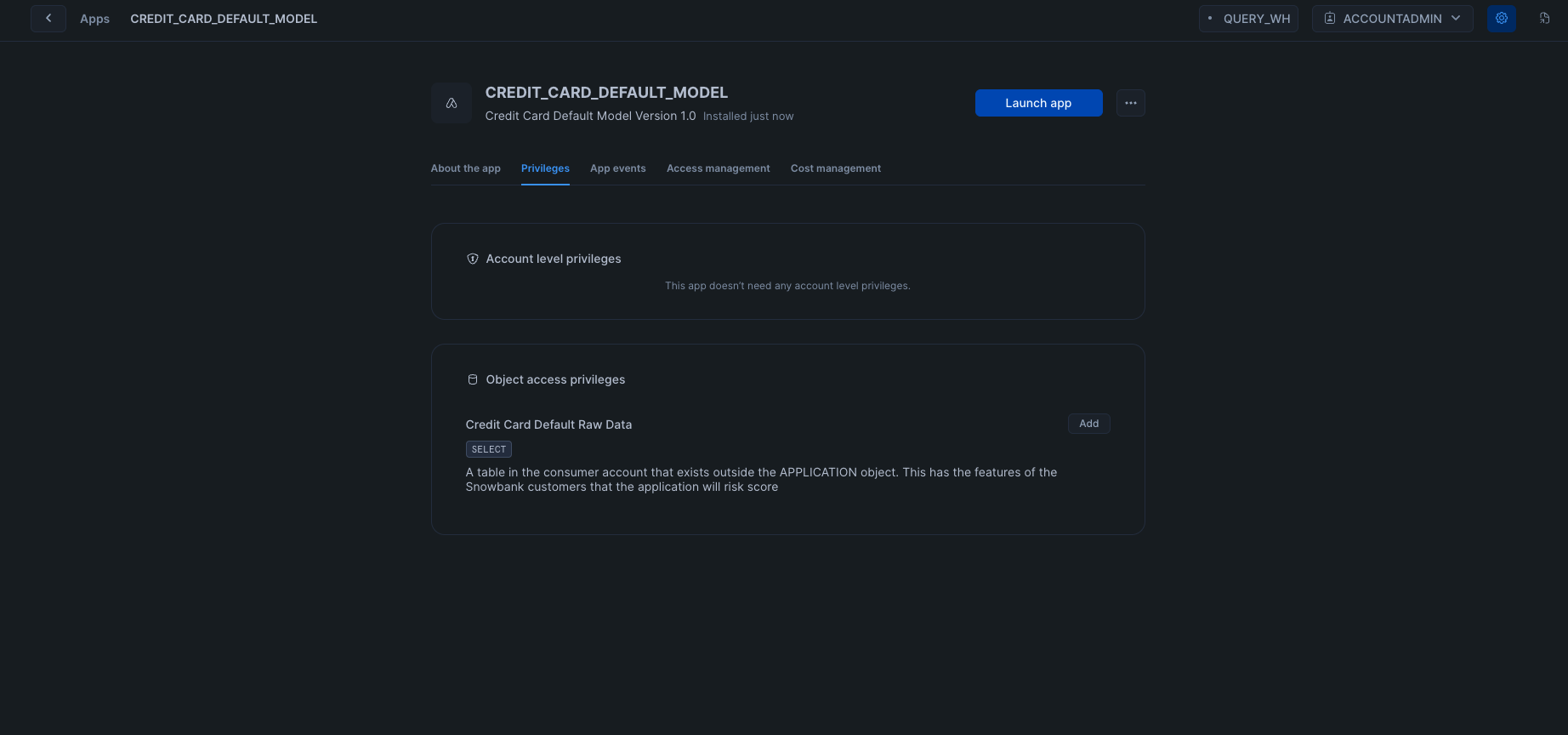

Select the Privileges tab, and then click "Add" to let our App refer to data in the consumer account

Diagram

Click "Select Data" and navigate to the CC_DEFAULT_UNSCORED_DATA in the NATIVE_APP_CONSUMER database and the NATIVE_APP_CONSUMER schema. Click save.

Consumer Account (Snowbank)

Open up a SQL Worksheet, and run the tests again. This time, the model has been shared with a segregated account, and the data that is being used for inference has not left the account.

-- This should be empty, as we have not called the procedure to populate the table yet
SELECT * FROM CREDIT_CARD_DEFAULT_MODEL.APP_CODE.RAW_TABLE_VIEW;

-- Now we call the procedure
CALL CREDIT_CARD_DEFAULT_MODEL.APP_CODE.CREATE_TABLE_FROM_REFERENCE_RAW();

-- And the table should now be populated
SELECT * FROM CREDIT_CARD_DEFAULT_MODEL.APP_CODE.RAW_TABLE_VIEW LIMIT 10;
SELECT COUNT(*) FROM CREDIT_CARD_DEFAULT_MODEL.APP_CODE.RAW_TABLE_VIEW;

-- Next we call the procedure to do the feature engineering. It will take 5 minutes to complete
CALL CREDIT_CARD_DEFAULT_MODEL.APP_CODE.CC_PROFILE_PROCESSING();

-- The feature table should now be populated
SELECT * FROM  CREDIT_CARD_DEFAULT_MODEL.APP_CODE.TRANSFORMED_TABLE_VIEW LIMIT 10;

-- Next we call the procedure that infers our model. This will take 5 mins to complete
CALL CREDIT_CARD_DEFAULT_MODEL.APP_CODE.CC_BATCH_PROCESSING();

-- And we can now see the scored table
SELECT * FROM CREDIT_CARD_DEFAULT_MODEL.APP_CODE.SCORED_TABLE_VIEW LIMIT 10;

We have successfully used a ML Model shared to us within our own environment.

Consumer Account (Snowbank)

Run the following SQL commands

USE ROLE ACCOUNTADMIN;
DROP APPLICATION CREDIT_CARD_DEFAULT_MODEL;
DROP DATABASE NATIVE_APP_CONSUMER;
DROP WAREHOUSE QUERY_WH;

Provider Account (Zamboni)

Navigate to Data Products > Provider Studio > Listings and select Credit Card Default Model

Click the vertical ellipses in the top right, and the select Unpublish

Diagram

Click the vertical ellipses again and select "Delete"

Open a new SQL worksheet and run the following

USE ROLE ACCOUNTADMIN;
DROP APPLICATION IF EXISTS CREDIT_CARD_PREDICTION_APP;
DROP APPLICATION PACKAGE CREDIT_CARD_PREDICTION_PACKAGE;
DROP DATABASE IF EXISTS NATIVE_APP_DEMO;
DROP WAREHOUSE TRAINING_WH;
DROP WAREHOUSE QUERY_WH;

Congratulations, you have just shared an ML Model over the Snowflake Marketplace via the Snowflake Native App framework. By sharing the ML Model to the Consumer account, we have realised the following benefits:

What You Learned

Resources
